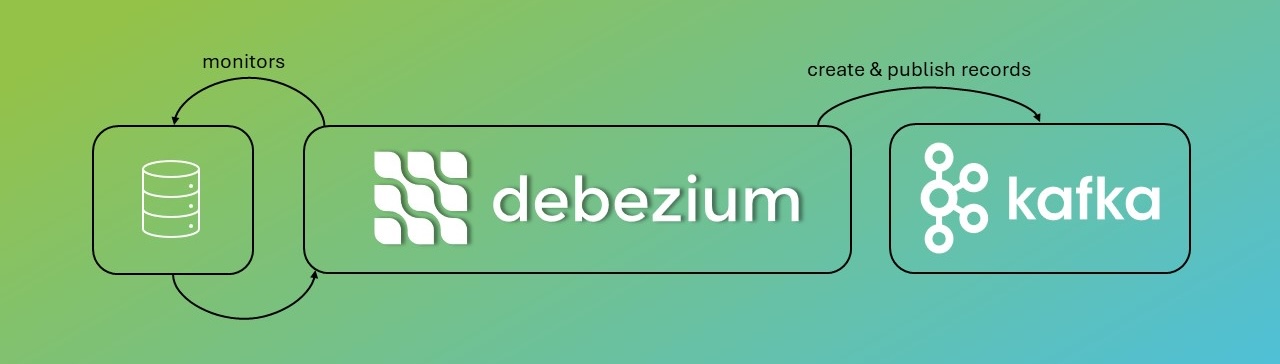

分钟级快速实践 Debezium MySQL-to-Kafka CDC

使用 Docker、KRaft 和 Kafdrop 分钟级快速实践最小化的 Debezium MySQL-to-Kafka CDC (Change Data Capture)。

1. 创建 docker-compose 文件

   mkdir debezium-amd64
   cd debezium-amd64

   vim docker-compose.yml

   services:
     kafka:
       image: bitnami/kafka:3.7
       platform: linux/amd64
       ports:
         - "9092:9092"
       environment:
         # enable KRaft (no Zookeeper)
         - KAFKA_ENABLE_KRAFT=yes
         - KAFKA_CFG_NODE_ID=1
         - KAFKA_CFG_PROCESS_ROLES=broker,controller
         - KAFKA_CFG_LISTENERS=PLAINTEXT://:9092,CONTROLLER://:9093
         - KAFKA_CFG_ADVERTISED_LISTENERS=PLAINTEXT://kafka:9092
         - KAFKA_CFG_CONTROLLER_LISTENER_NAMES=CONTROLLER
         - KAFKA_CFG_CONTROLLER_QUORUM_VOTERS=1@kafka:9093
         - KAFKA_CFG_AUTO_CREATE_TOPICS_ENABLE=true
         - ALLOW_PLAINTEXT_LISTENER=yes

     connect:
       image: quay.io/debezium/connect:3.2
       platform: linux/amd64
       ports:
         - "8083:8083"
       environment:
         - BOOTSTRAP_SERVERS=kafka:9092
         - GROUP_ID=1
         - CONFIG_STORAGE_TOPIC=connect_configs
         - OFFSET_STORAGE_TOPIC=connect_offsets
         - STATUS_STORAGE_TOPIC=connect_statuses
         - KEY_CONVERTER=org.apache.kafka.connect.json.JsonConverter
         - VALUE_CONVERTER=org.apache.kafka.connect.json.JsonConverter
         - KEY_CONVERTER_SCHEMAS_ENABLE=false
         - VALUE_CONVERTER_SCHEMAS_ENABLE=false
       depends_on:
         - kafka

     kafdrop:
       image: obsidiandynamics/kafdrop:latest
       platform: linux/amd64
       ports:
         - "9000:9000"
       environment:
         - KAFKA_BROKERCONNECT=kafka:9092
       depends_on:
         - kafka

     mysql:
       image: mysql:8.0
       platform: linux/amd64
       ports:
         - "3306:3306"
       environment:
         - MYSQL_ROOT_PASSWORD=debezium
         - MYSQL_USER=debezium
         - MYSQL_PASSWORD=dbz
         - MYSQL_DATABASE=inventory
       command: >
         --server-id=857
         --log-bin=binlog
         --binlog_format=ROW
         --binlog_row_image=FULL
         --gtid_mode=ON
         --enforce-gtid-consistency=ON
         --binlog_expire_logs_seconds=600
       volumes:
         - ./mysql-init.sql:/docker-entrypoint-initdb.d/mysql-init.sql

   vim mysql-init.sql

   -- ensure the database exists and is selected
   CREATE DATABASE IF NOT EXISTS inventory;
   USE inventory;

   -- minimal demo table (keep it simple for CDC)
   CREATE TABLE IF NOT EXISTS customers (
     id INT PRIMARY KEY AUTO_INCREMENT,
     first_name VARCHAR(50),
     last_name  VARCHAR(50),
     email      VARCHAR(100),
     created_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP
   );

   -- seed data for snapshot
   INSERT INTO customers (first_name, last_name, email) VALUES
   ('Alice', 'Smith', 'alice@example.com'),
   ('Bob',   'Johnson', 'bob@example.com');

   vim register-mysql.json

   {
     "name": "mysql-inventory-connector",
     "config": {
       "connector.class": "io.debezium.connector.mysql.MySqlConnector",
       "tasks.max": "1",

       "database.hostname": "mysql",
       "database.port": "3306",
       "database.user": "debezium",
       "database.password": "dbz",

       "database.server.id": "857",

       "topic.prefix": "mysql_server",
       "database.include.list": "inventory",
       "table.include.list": "inventory.customers",

       "snapshot.mode": "initial",
       "snapshot.locking.mode": "none",
       "include.schema.changes": "false",
       "tombstones.on.delete": "false",

       "schema.history.internal.kafka.bootstrap.servers": "kafka:9092",
       "schema.history.internal.kafka.topic": "schema-changes.inventory"
     }
   }

   ls -1

   docker-compose.yml
   mysql-init.sql
   register-mysql.json

2. 启动服务

   docker-compose up -d

   [+] Running 5/5
   ✔ Network debezium-amd64_default      Created
   ✔ Container debezium-amd64-mysql-1    Started
   ✔ Container debezium-amd64-kafka-1    Started
   ✔ Container debezium-amd64-kafdrop-1  Started
   ✔ Container debezium-amd64-connect-1  Started

3. 授权 Debezium connector 访问 MySQL

   docker-compose exec -T mysql mysql -uroot -pdebezium -e "
   GRANT SELECT, RELOAD, SHOW DATABASES, REPLICATION SLAVE, REPLICATION CLIENT, LOCK TABLES ON *.* TO 'debezium'@'%';
   FLUSH PRIVILEGES;"

4. 注册 Debezium connector

   curl -s -X POST http://localhost:8083/connectors \
     -H "Content-Type: application/json" \
     -d @register-mysql.json

5. 更新 Debezium connector 配置（可选）

   jq '.config' register-mysql.json | \
   curl -s -X PUT http://localhost:8083/connectors/mysql-inventory-connector/config \
     -H "Content-Type: application/json" \
     -d @- | jq .

6. 检查 Debezium connector 状态

   curl -s localhost:8083/connectors/mysql-inventory-connector/status | jq .

   {
     "name": "mysql-inventory-connector",
     "connector": {
       "state": "RUNNING",
       "worker_id": "192.168.107.5:8083"
     },
     "tasks": [
       {
         "id": 0,
         "state": "RUNNING",
         "worker_id": "192.168.107.5:8083"
       }
     ],
     "type": "source"
   }

7. 触发 CDC 事件

   插入/更新/删除一些数据行来查看增/改/删事件

   docker-compose exec -T mysql mysql -udebezium -pdbz -e "USE inventory;
   INSERT INTO customers (first_name,last_name,email) VALUES ('Charlie','Wang','charlie@example.com');
   UPDATE customers SET email='alice_new@example.com' WHERE first_name='Alice';
   DELETE FROM customers WHERE first_name='Bob';"

8. 在 Kafdrop 上查看主题

   访问 http://localhost:9000

   查看主题 mysql_server.inventory.customers

   查看新事件 "op":"c" / "op":"u" / "op":"d"
